GENOA 3DP Simulation

genoa_3d

AlphaSTAR’s GENOA 3DP is a cutting-edge simulation software for extrusion-based polymer AM. Our HIGH-FIDELITY, PHYSICS-BASED ICME approach leverages a digital workflow to ensure accurate first-time-right parts.

Leveraging over three decades of expertise in micromechanics material behavior, the validated thermo-mechanical analysis is driven by printer toolpaths, process parameters, and material properties, allowing it to be scaled across different hardware and material systems. End-users are empowered with reliable models to inform decision making to help streamline AM production workflows, R&D workflows, and even hardware development workflows.

We call this PREDICTIVE DIGITAL TWIN TECHNOLOGY that delivers value in applications from desktop FDM to Large Format AM (LFAM).

GENOA 3DP

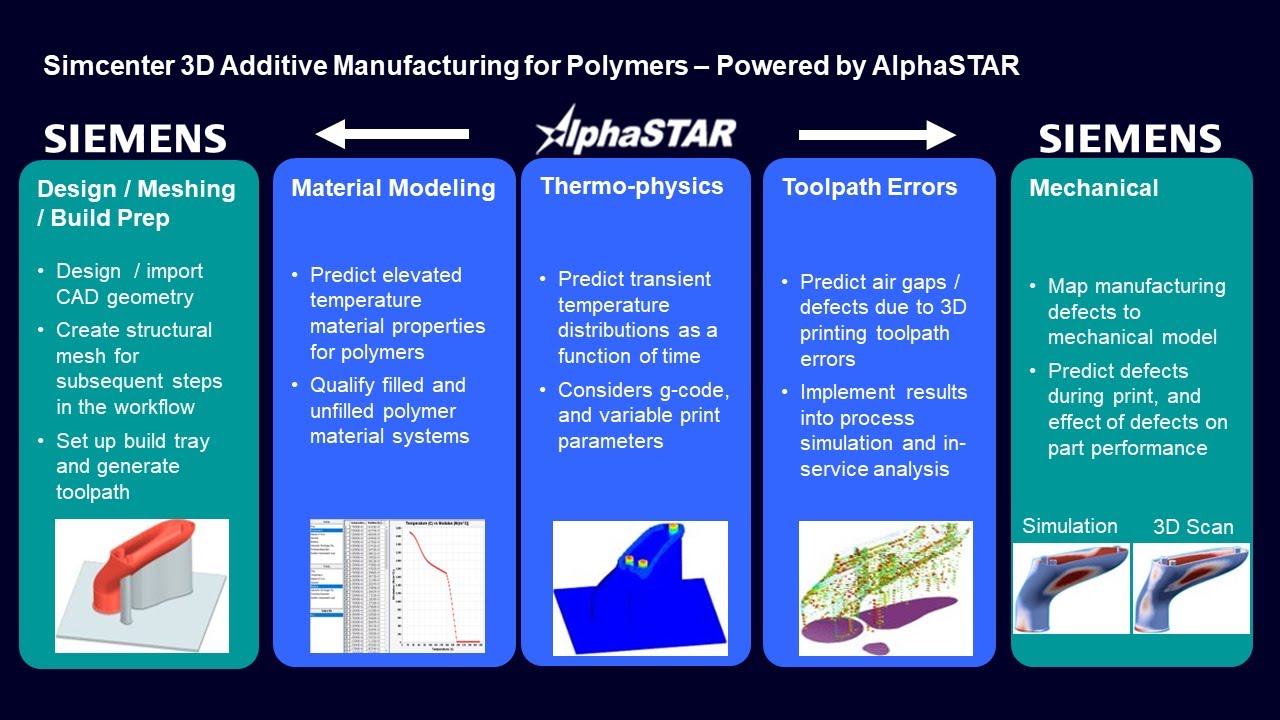

GENOA 3DP is now available through the NX Platform and Simcenter 3D!  Partnering with Siemens Digital Industries Software, we’re now offering an end-to-end CAD to CAE thermo-mechanical process simulation solution for extrusion-based polymer 3D printing process. Enhance your additive manufacturing workflow with a holistic, production oriented approach to predict build quality of as-built parts considering material, design, toolpath, AM parameters, and print orientation.

BUSINESS VALUE

  • Reduce print iterations, cost, and effort.
  • Faster time-to-market/ shorter lead times.
  • Increased reliability by ensuring as-built parts meet design and performance requirements.
  • Optimize print configuration and fine tune process settings before the actual print.
  • Accelerate DfAM processes to enhance production efficiency.
  • Workflow available in Siemens* NX Simcenter 3D platform.

Technical value:

  • Predict thermal history, deformation, and residual stresses during the printing process.
  • Understand impact of materials, anisotropy, print path, build plate, chamber temperature, and other print parameters on the quality of the as-built part.
  • G-code / toolpath-driven explicit transient thermal solver for high resolution thermal predictions.
  • Compatible with external conformal mesh, or automatically generated toolpath-based voxel mesh.
  • Voxel mesh results can be mapped to a smooth surface mesh for visualization.
  • Connectivity with MCQ to establish a database of qualified 3D printed material properties.

Supported material extrusion AM Process:

  • Fused Deposition Modeling (FDM)
  • Fused Filament Fabrication (FFF)
  • Large Format Additive Manufacturing (LFAM)
  • Fused Granulate Fabrication (FGF)
PDF-Icon

Case Studies

Download the latest case study.

PDF-Icon

Datasheets

Download the latest datasheet.
